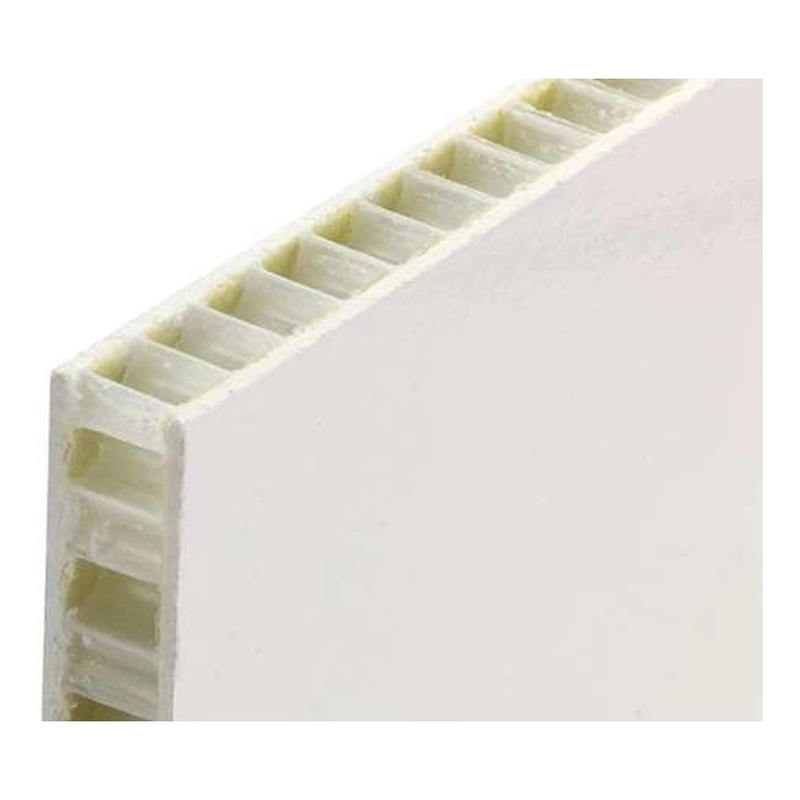

FRP Honeycomb Side Panel 4300x2300x20mm
Part number ATP-ACC-06 · FRP Honeycomb Panels
Price on application: request a quote · Enquiry
Commercial grade FRP (Fiberglass Reinforced Plastic) polypropylene honeycomb side panel engineered specifically for Australian truck and van bodybuilders. Measuring 4300mm long by 2300mm wide at 20mm thickness, this panel provides 9.89m² of seamless surface area. The high-gloss gelcoat exterior delivers superior UV resistance and weather durability against harsh Australian sun, while the non-corrosive thermoplastic honeycomb core delivers significant weight savings over traditional steel or plywood walls without sacrificing torsional rigidity.
Fits: Suits rigid pantechs, dry freight bodies, and delivery trucks up to 4.3m length
Specifications
| Dimensions | 4300 x 2300 x 20mm (9.89 m²) |
|---|---|
| Surface Area | 9.89 m² |
| Product Parameter | Dimensions: 4300 x 2300 x 20mm | Area: 9.89m² | Core: Polypropylene Honeycomb (8mm cell) | Facing: 1.5mm - 2.0mm High-Gloss White Woven Roving Gelcoat (RAL 9016) | Density: 80 kg/m³ | Weight: ~7.5 kg/m² |
| Technical Specification | Continuous structural sandwich panel offering superior impact damping, high flexural strength, rot-proof and waterproof construction for commercial rigid pantech bodies and dry freight vans. |
| Certification | AS/NZS ISO 9001 Approved Commercial Transport Standard; AS 4256.3 & ISO 845 Compliance |
| Australian Standard | AS/NZS ISO 9001 Approved Commercial Transport Standard; AS 4256.3 & ISO 845 Compliance |
