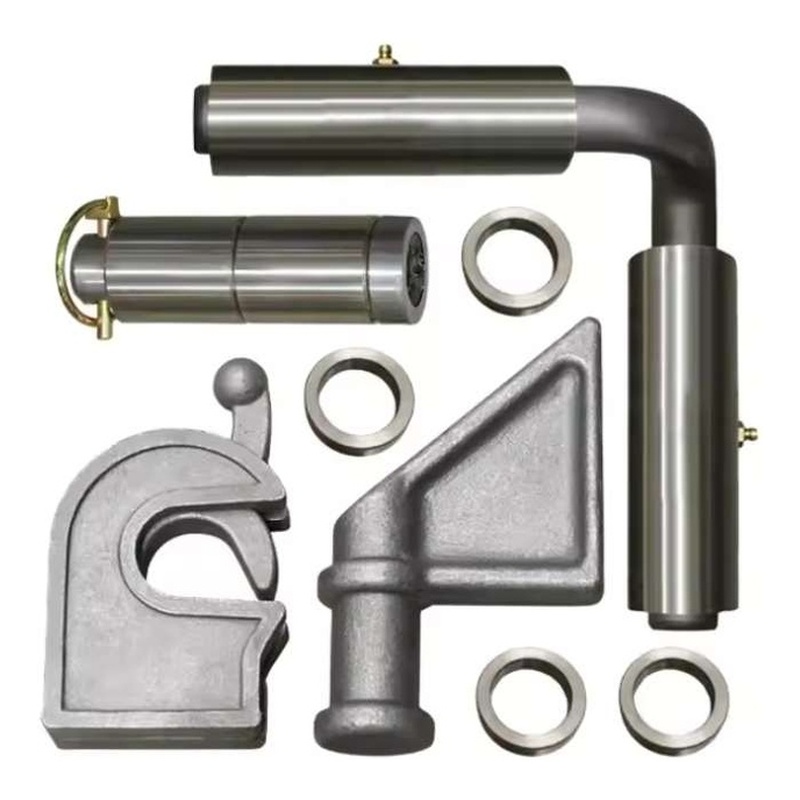

3-Way Tailgate Hinge Side Swing Gate Tipper Kit 50mm
Part number ATP-TP-107 · Tipper Hardware
$144.00 AUD · In stock VIC
3-Way Tailgate Hinge Side Swing Gate Tipper Kit 50mm, engineered for Australian commercial truck and trailer bodies. Ex Campbellfield stock.
Fits: Suits severe duty rock and bulk tipper bodies
Specifications
| Pin Size | 50 mm |
|---|---|
| Function | Heavy 3-way tailgate side swing pivot |
| Material | Forged alloy steel |
| Dimensions | 50mm Pin Diameter x 230mm Centers |
| Product Parameter | Pin: 50mm dia | Centers: 230mm | Premium forged carbon steel | 50mm solid pins | Rated for heavy dump bodies |
| Technical Specification | Severe service 50mm 3-way tipper tailgate pivot and swing kit for road trains and mining tippers |
| Certification | AS/NZS ISO 9001 Heavy Commercial Transport Standard Approved |
| Australian Standard | AS/NZS ISO 9001 Heavy Commercial Transport Standard Approved |
