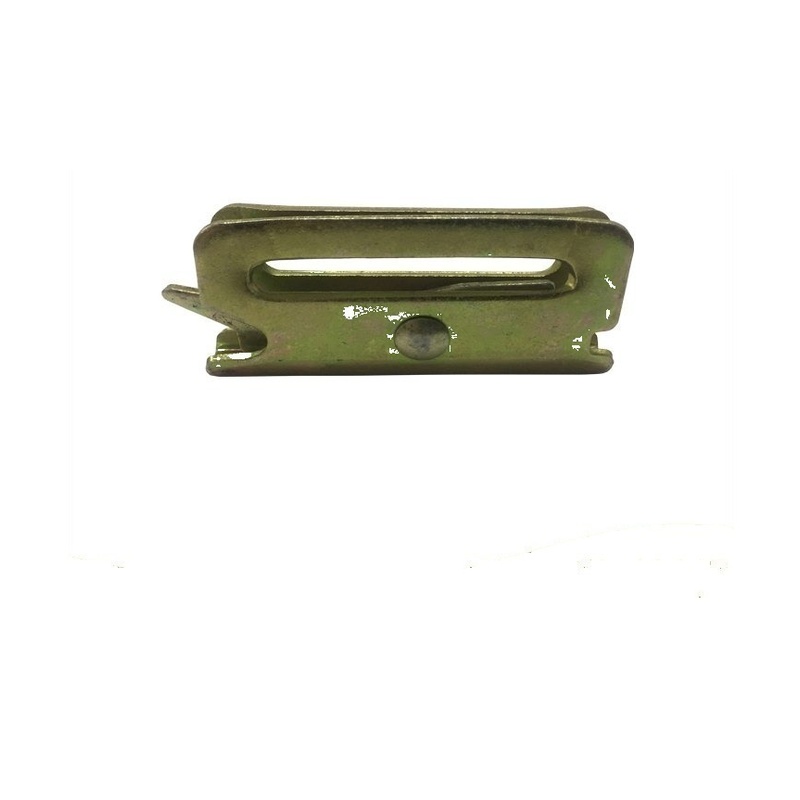

E & Q-Track Heavy-Duty End Fitting with Webbing Strap & Forged Snap Hook
Part number ATP-TP-17 · Cargo Control
$23.00 AUD · In stock VIC
Premium logistics track connector designed for standard horizontal and vertical E-Track and Q-Track systems. Supplied complete with a high-tenacity 50mm industrial webbing strap and a heavy forged steel clevis snap hook with spring safety latch. Provides instant, ultra-secure anchor attachment for transport restraint chains, cargo nets, and tie-down straps.
Fits: Suits curtains and straps
Specifications
| Use | Curtains |
|---|---|
| Type | End fitting |
| Australian Standard | AS/NZS ISO 9001 Commercial Transport Standard Approved |
| Certification | AS/NZS ISO 9001 Approved Commercial Transport Standard; AS/NZS 4380 & DOT Compliance |
| Track System | Universal E-Track & Q-Track (Series E & Series A) |
| Strap Width | 50mm (2") Industrial Heavy-Duty Polyester Webbing |
| Hook Type | Forged Alloy Steel Clevis Snap Hook with Spring Safety Latch |
| Material | High-Tensile Zinc Dichromate Plated Carbon Steel |
| Breaking Strength | 2,270 kg (5,000 lbs) |
| Working Load Limit | 750 kg (1,650 lbs) WLL |
| Dimensions | L220mm Overall x W65mm |
