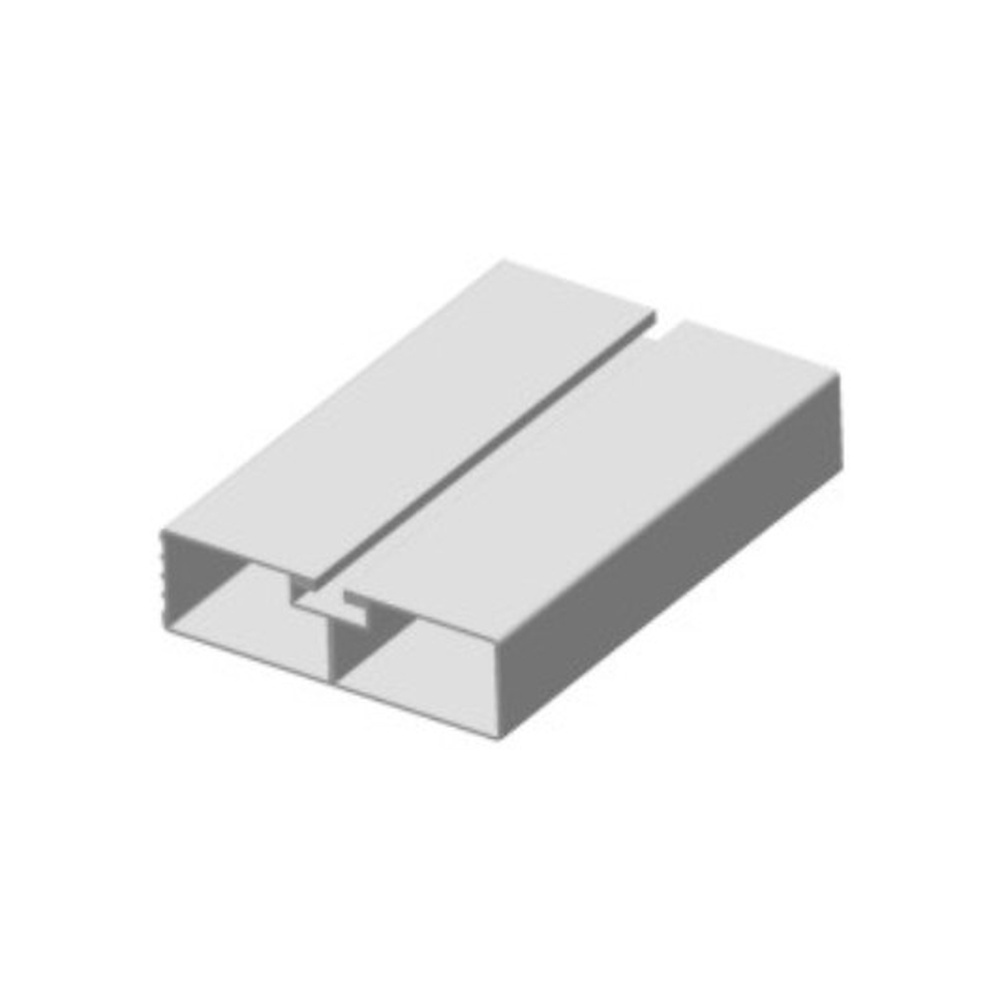

Heavy Duty Aluminium Side Guard Profile Tube 6.5M
Part number ATP-TP-83 · Side Guards
$82.00 AUD · In stock VIC
The Aurex 6.5-Metre Aluminium Side Guard Profile Tube is engineered specifically for commercial vehicle bodybuilders, fleet operators, and trailer retrofits across Australia. Constructed from structural 6061-T6 architectural-grade extruded aluminium alloy, this profile delivers exceptional torsional strength while remaining lightweight to maximize legal payload capacity. Designed to satisfy Australian Design Rule (ADR) 84/00 and UN ECE R73 lateral protection requirements, this continuous underrun barrier prevents vulnerable road users, vehicles, and debris from being drawn beneath semi-trailer and truck chassis. Features an aerodynamic ribbed double-rail front face that cuts air turbulence for improved fleet fuel economy, integrated rear T-slot mounting tracks for seamless bolt-on bracket attachment, and smooth radiused edges that eliminate pinch points. Can be easily cut to length to suit custom chassis wheelbases and mates perfectly with Aurex protective end caps (ATP-TP-84) and 90° corner joints (ATP-TP-85).
Fits: Suits ADR compliant lateral protection systems
Specifications
| Length | 6.5 Metres (6500mm) |
|---|---|
| Profile Height | 100mm |
| Profile Depth | 30mm |
| Material | Structural Grade 6061-T6 Extruded Aluminium Alloy |
| Finish | Natural Satin Mill Finish / Anodized Surface |
| Standard Compliance | ADR 84/00 & UN ECE R73 Lateral Protection Systems |
| Mounting System | Rear T-Slot Channels for Modular Bracket Fixation |
| Application | Semi-Trailers, B-Doubles, Curtainsiders, Rigid Trucks, and Tankers |
| Dimensions | 6.5 Metres Length x 100mm Height |
| Product Parameter | Length: 6.5m | Height: 100mm | Depth: 30mm | Material: Structural 6061-T6 aluminium extrusion | Aerodynamic ribbed |
| Technical Specification | Continuous side guard rail profile extrusion for custom bodybuilding and fleet retrofits |
| Certification | ADR 84/00 & UN ECE R73 Material Strength Certified |
| Australian Standard | ADR 84/00 & UN ECE R73 Material Strength Certified |
