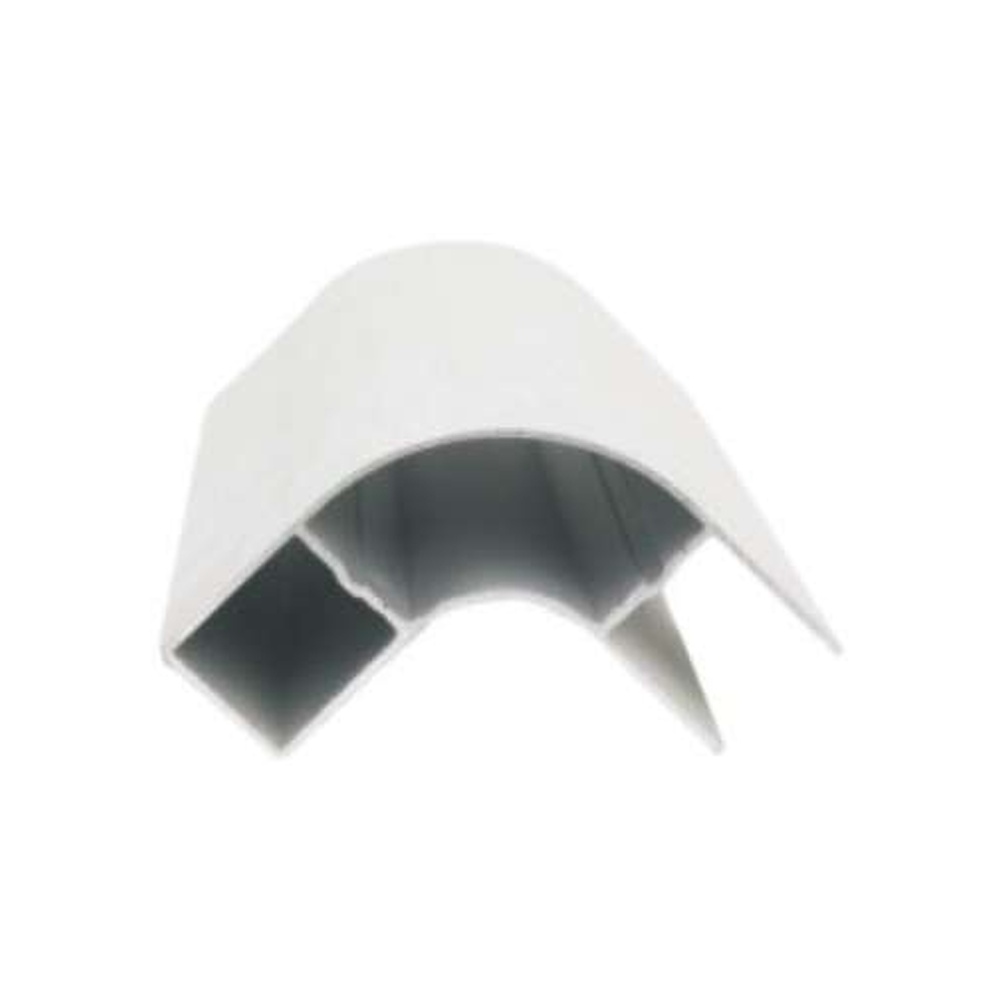

Aluminium Side Guard 90 Degree Connector
Part number ATP-TP-85 · Side Guards
$24.00 AUD · In stock VIC
The Aurex Aluminium Side Guard 90° Connector provides a continuous, high-integrity 90-degree transition between frontal and lateral underrun barrier rails on commercial trucks, prime movers, and trailers. Under Australian Design Rule ADR 84/00 and UN ECE R73 regulations, lateral protection devices must maintain a smooth, radiused corner contour to prevent vehicle snagging and maximize impact deflection. Crafted from structural die-cast aluminium alloy, this corner connector features dual precision-profiled insert spigots that slide directly into adjacent 100x30mm side guard tubes (ATP-TP-83). The external corner is engineered with a smooth aerodynamic radius that eliminates abrupt angles and sharp transitions. Ideal for both forward cab-to-body transitions and rear trailer overhang returns, it delivers unmatched rigidity, structural alignment, and corrosion resistance for demanding long-haul Australian transport operations.
Fits: Suits side guard rail wrap-around corners
Specifications
| Transition Angle | 90 Degrees Curved Corner |
|---|---|
| Profile Compatibility | Suits 100mm x 30mm Side Guard Rail (ATP-TP-83) |
| Material | High-Tensile Die-Cast Structural Aluminium Alloy |
| Leg Dimensions | 150mm x 150mm Internal Spigot Extension |
| Finish | Natural Satin Aluminium Finish |
| Compliance | ADR 84/00, UN ECE R73 Commercial Underrun Protection |
| Application | Truck Body Lateral Protection Systems, Front Returns & Rear Corners |
| Dimensions | 90 Degree Corner (150 x 150mm Legs) |
| Product Parameter | Angle: 90 Degree | Material: Die-cast structural aluminium | Smooth rounded external safety radius |
| Technical Specification | 90-degree corner transition connector for side guard rail systems |
| Certification | ADR 84/00 Safety Corner Mandate Approved |
| Australian Standard | ADR 84/00 Safety Corner Mandate Approved |
