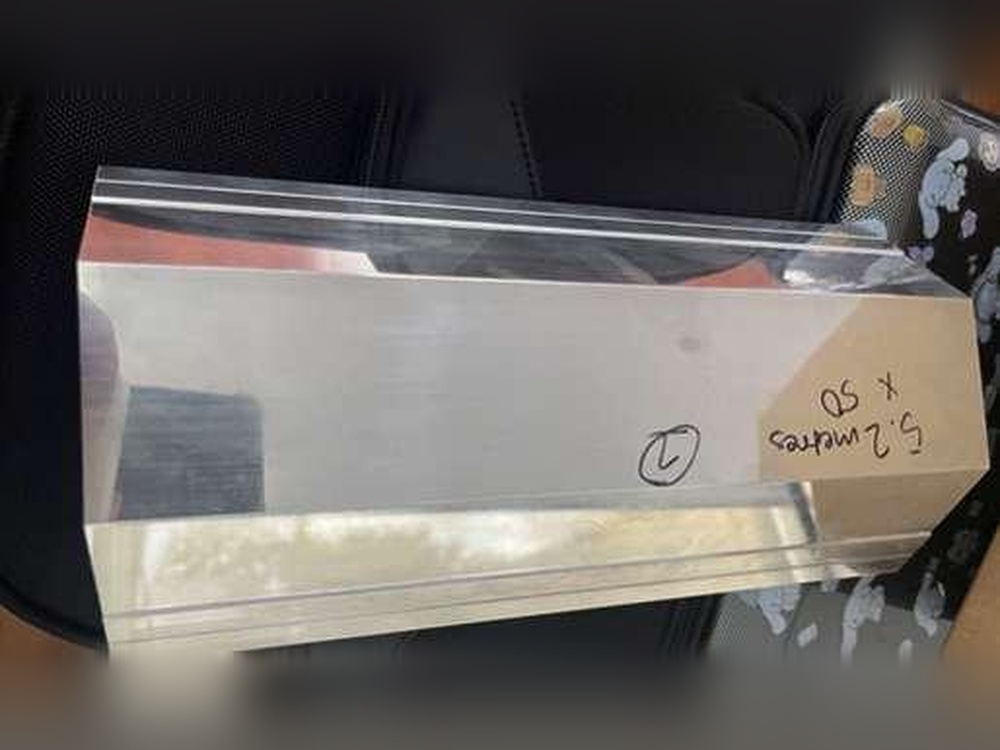

Aluminium Top Rail Body Profile 01 - 5.0 Metres
Part number ATP-TP-88 · Profiles
$116.00 AUD · In stock VIC
Aluminium Top Rail Body Profile 01 - 5.0 Metres, engineered for Australian commercial truck and trailer bodies. Ex Campbellfield stock.
Fits: Suits dry freight and refrigerated van bodies
Specifications
| Length | 5.0 Metres |
|---|---|
| Material | Structural 6061-T6 Aluminium |
| Use | Roof perimeter & coaming |
| Dimensions | 5.0 Metres Length x 44 x 147mm |
| Product Parameter | Length: 5.0m | Section: 44 x 147mm | Material: Structural 6061-T6 aluminium extrusion | Integrated roof bow track |
| Technical Specification | Upper perimeter roof coaming rail extrusion for dry freight and refrigerated bodies |
| Certification | AS/NZS 1866 Structural Extrusion Approved |
| Australian Standard | AS/NZS 1866 Structural Extrusion Approved |
