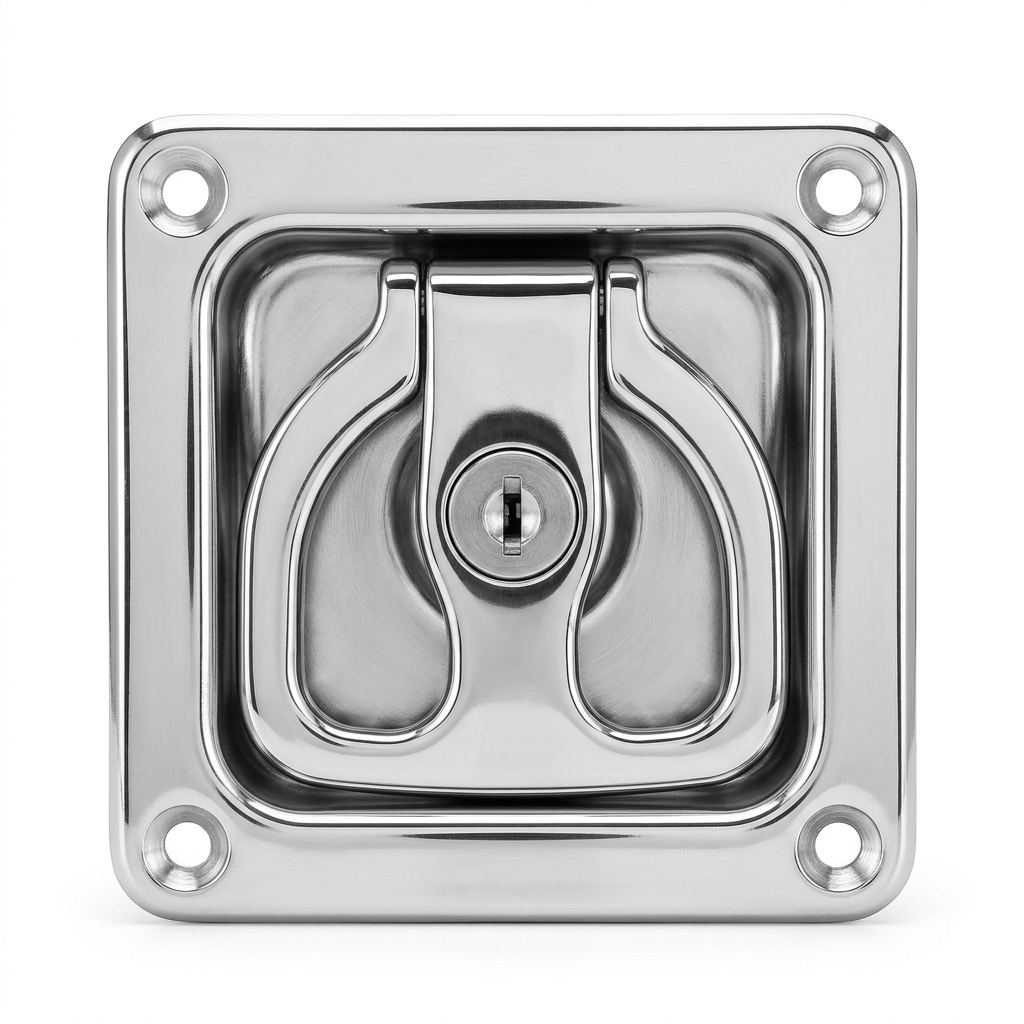

Stainless Steel Flush Paddle Handle Lock with Sealed Cylinder 120x92mm
Part number ATP-TP-20 · Door Hardware
$33.00 AUD · In stock VIC
Commercial flush-mount recessed paddle latch lock manufactured from Grade 304 mirror-polished stainless steel. Engineered for truck underbody toolboxes, canopies, generator enclosures, and service bodies. Features an integrated key lock cylinder with spring-loaded weatherproof flap, rubber sealing gasket, and four countersunk corner mounting holes.
Fits: Suits toolboxes and canopies
Specifications
| Dimensions | 120mm Width x 92mm Height x 45mm Depth |
|---|---|
| Cutout Size | 93mm x 67mm |
| Material | Grade 304 mirror polished stainless steel |
| Mounting | 4 x countersunk corner mounting holes (121x99mm pitch) |
| Ingress Protection | IP65 Weather & Dust Ingress Protection with heavy-duty perimeter gasket |
| Keys | 2 double-sided automotive keys included |
| Australian Standard | AS/NZS ISO 9001 & IP65 Standard Approved |
| Certification | AS/NZS ISO 9001 & IP65 Standard Approved |
