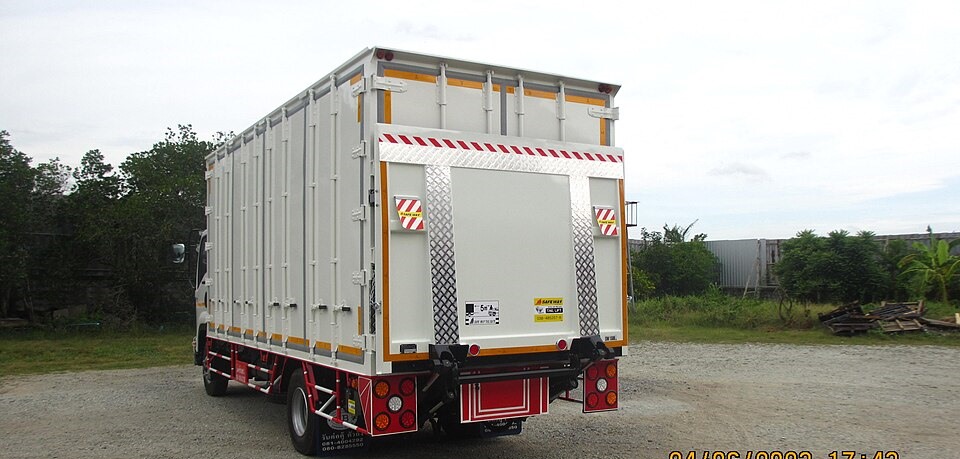

Hydraulic Tail Lift 2T Aluminium W2450xH2400 24V

Part number ATP-TL-01 · Tail Lifts

Hydraulic Tail Lift 2T Aluminium W2450xH2400 24V

Price on application: request a quote · Enquiry

Engineered specifically for Australian medium-to-heavy rigid transport fleets, the Aurex 2,000 kg aluminium cantilever tail lift delivers optimal cargo loading efficiency with minimal tare weight penalty. Constructed from high-tensile extruded aluminium alloy with integrated longitudinal traction grooves, the 2450 x 2400 mm platform withstands intensive pallet jack, roll cage, and forklift traffic. The robust 4-cylinder hydraulic geometry features independent lift and tilt circuits with automatic mechanical ground self-levelling, ensuring the platform remains planar on uneven curbs and loading docks. Powered by an enclosed 24V DC 2.4 kW electro-hydraulic unit equipped with hose-burst safety check valves and thermal overload protection. Fully certified to Australian Design Rule ADR 84/00 and AS/NZS 1418.8.

Fits: Suits rigid trucks and tray bodies

Specifications

Product Type4-Cylinder Hydraulic Cantilever Tail Lift
Rated Load Capacity2000 kg at 750 mm load center
Platform Dimensions2450 W x 2400 H mm
Platform MaterialMarine-grade 6061-T6 extruded aluminium alloy with anti-slip corrugation
Hydraulic Mechanism4-cylinder geometric linkage (2 lift cylinders + 2 tilt cylinders)
Self-Levelling SystemAutomatic hydraulic ground-tilt memory and self-levelling compensation
Power Supply24V DC electro-hydraulic power pack
Motor Output Rating2.4 kW high-torque DC motor with thermal overload cutoff
Working Pressure16 – 18 MPa (160 – 180 bar)
Lifting Height Range950 mm – 1450 mm (chassis bed height)
Chassis Mounting Spread750 / 860 / 880 mm universal Australian chassis fitment
Tare Weight~450 kg complete assembly
Hydraulic SafetyVelocity-sensing hose burst check valves on all 4 cylinder ports & internal relief
Ground Contact ProtectionReplaceable synthetic low-noise pavement protection rollers
Warning & Hazard VisibilityDual corner amber flashing LED hazard lamps & reflective ADR flags
Control InterfaceExternal IP67 dual-hand safety control box, platform foot controls, in-cab master isolator
Dimensions2450 W x 2400 H mm
Technical SpecificationHigh-efficiency 2.0-tonne cantilever tail lift for 12T–26T GVM rigid trucks, dry freight pantechs, and curtain-side logistics.
ComplianceADR 84/00 & AS/NZS 1418.8 certified
Australian StandardADR 84/00 & AS/NZS 1418.8 Certified
CertificationADR 84/00 & AS/NZS 1418.8 Certified Commercial Vehicle Tail Lift
