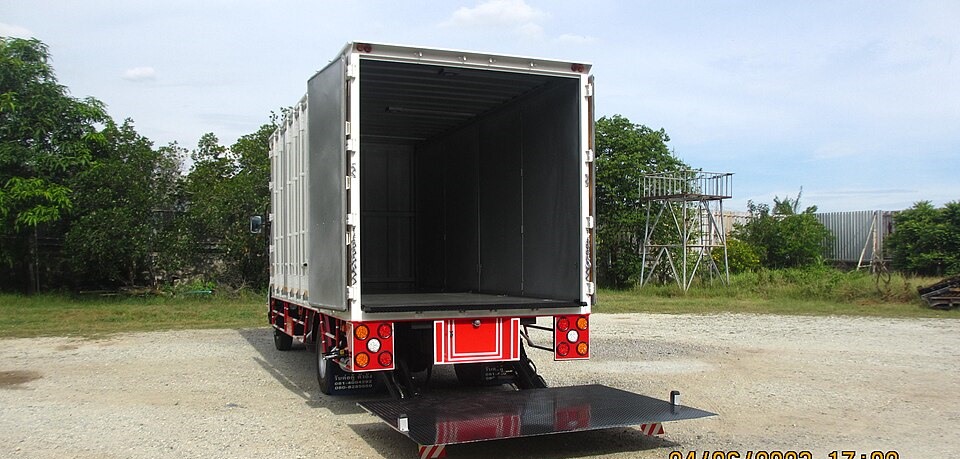

Hydraulic Tail Lift 1.5T Aluminium W2450xH2400 24V
Part number ATP-TL-04 · Tail Lifts
Price on application: request a quote · Enquiry
The Aurex 1,500 kg Fleet-Lite cantilever tail lift is optimized for medium rigid delivery vehicles (8T to 15T GVM), parcel logistics, and retail distribution fleets. Weighing only ~410 kg, it provides maximum legal payload retention while offering a full 2450 x 2400 mm loading area suitable for two standard pallets or three roll cages. The 4-cylinder hydraulic mechanism delivers rapid, smooth cycle times powered by an energy-efficient 2.2 kW 24V DC power unit. Complete with hose-burst safety protection, automatic ground tilt, and full ADR 84/00 certification.
Fits: Suits light rigids and vans
Specifications
| Product Type | Lightweight 4-Cylinder Cantilever Tail Lift |
|---|---|
| Rated Load Capacity | 1500 kg at 600 – 750 mm load center |
| Platform Dimensions | 2450 W x 2400 H mm |
| Platform Material | High-strength lightweight extruded aluminium with grooved non-slip deck |
| Hydraulic Mechanism | 4-cylinder cantilever linkage (2 lift cylinders + 2 tilt cylinders) |
| Self-Levelling System | Mechanical-hydraulic self-levelling with automatic ground-tilt compensation |
| Power Supply | 24V DC compact electro-hydraulic power unit |
| Motor Output Rating | 2.2 kW high-efficiency DC motor |
| Working Pressure | 15 – 17 MPa (150 – 170 bar) |
| Lifting Height Range | 950 mm – 1250 mm (medium rigid chassis) |
| Chassis Mounting Spread | 750 / 860 mm chassis rail spread |
| Tare Weight | ~410 kg (industry-leading light tare) |
| Hydraulic Safety | Hose-burst safety check valves on all ports & internal relief valve |
| Ground Contact Protection | Low-friction synthetic pavement protection rollers |
| Warning & Hazard Visibility | Amber flashing LED safety beacons on platform corners + ADR flags |
| Control Interface | IP67 dual-hand push button box, dual foot switches, in-cab isolator |
| Dimensions | 2450 W x 2400 H mm |
| Technical Specification | Lightweight 1.5-tonne cantilever tail lift for 8T–15T GVM medium rigid trucks, parcel delivery, and metro distribution fleets. |
| Compliance | ADR 84/00 & AS/NZS 1418.8 certified |
| Australian Standard | ADR 84/00 & AS/NZS 1418.8 Certified |
| Certification | ADR 84/00 & AS/NZS 1418.8 Certified Commercial Vehicle Tail Lift |
