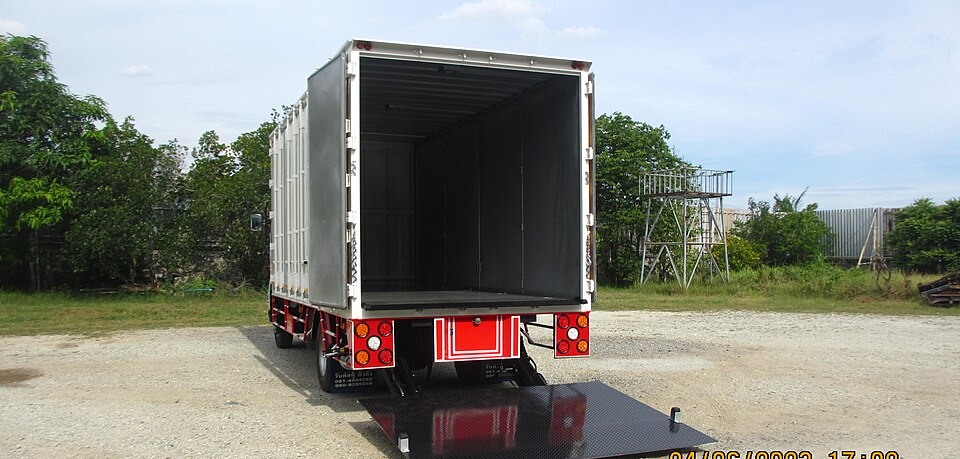

Hydraulic Tail Lift 2T Aluminium W2450xH2600 24V
Part number ATP-TL-03 · Tail Lifts
Price on application: request a quote · Enquiry
Designed for high-cube pantechs, furniture bodies, and refrigerated logistics vehicles, the Aurex 2,000 kg extended-height tail lift features an expansive 2600 mm tall aluminium platform that doubles as a full-height weather-tight rear door closure. The extended lever arm geometry delivers a vertical lift range up to 1,500 mm, accommodating tall chassis frames and dock levelers. Built with reinforced extruded aluminium box profiles, high-tensile chrome-plated cylinder shafts, synthetic ground rollers, and a high-output 24V 2.4 kW power pack with dual-speed lowering control. ADR 84/00 rear underrun certified.
Fits: Suits rigid trucks and tray bodies
Specifications
| Product Type | 4-Cylinder High-Cube Cantilever Tail Lift (Full Door Closure) |
|---|---|
| Rated Load Capacity | 2000 kg at 750 mm load center |
| Platform Dimensions | 2450 W x 2600 H mm |
| Platform Material | Reinforced extruded aluminium alloy with continuous anti-slip profile |
| Hydraulic Mechanism | Long-geometry 4-cylinder linkage (2 lift + 2 tilt cylinders) |
| Self-Levelling System | Full hydraulic ground-tilt memory with automatic tilt-at-ground |
| Power Supply | 24V DC high-capacity hydraulic power pack |
| Motor Output Rating | 2.4 kW heavy-duty DC motor |
| Working Pressure | 16 – 18 MPa (160 – 180 bar) |
| Lifting Height Range | 1100 mm – 1500 mm (tall chassis & high-cube pantechs) |
| Chassis Mounting Spread | 750 / 860 / 880 mm universal fitment |
| Tare Weight | ~465 kg |
| Hydraulic Safety | Inline velocity-fuse burst valves on all cylinders & thermal overload switch |
| Ground Contact Protection | Twin heavy-duty synthetic pavement protection rollers |
| Warning & Hazard Visibility | Dual recessed corner flashing LED lamps & ADR compliance flags |
| Control Interface | Weatherproof IP67 exterior enclosure, platform foot controls, in-cab master switch |
| Dimensions | 2450 W x 2600 H mm |
| Technical Specification | High-cube 2.0-tonne cantilever tail lift with full-closure door capability for tall pantechs, refrigerated logistics, and furniture freight. |
| Compliance | ADR 84/00 & AS/NZS 1418.8 certified |
| Australian Standard | ADR 84/00 & AS/NZS 1418.8 Certified |
| Certification | ADR 84/00 & AS/NZS 1418.8 Certified Commercial Vehicle Tail Lift |
