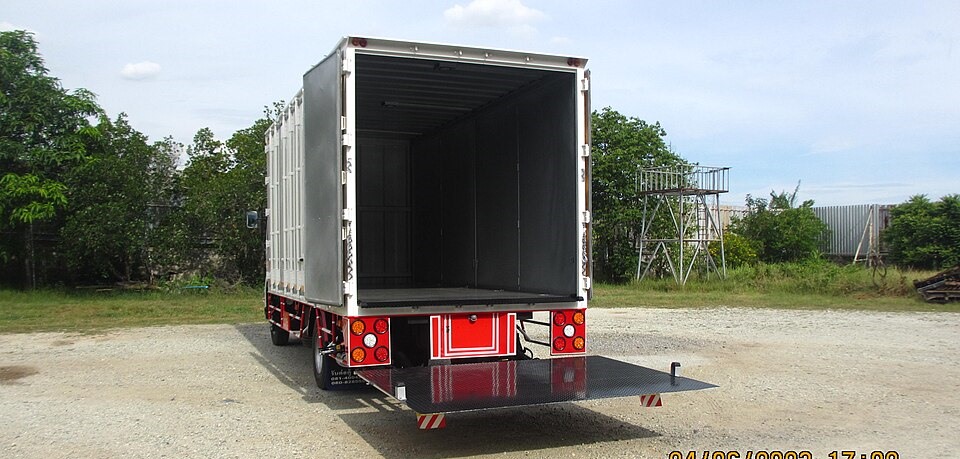

Hydraulic Tail Lift 3T Steel W2450xH2600 24V

Part number ATP-TL-05 · Tail Lifts

Hydraulic Tail Lift 3T Steel W2450xH2600 24V

Price on application: request a quote · Enquiry

Engineered for severe-duty freight, linehaul semi-trailers, machinery transport, and high-density industrial logistics, the Aurex 3,000 kg Titan-Duty tail lift is built entirely from high-tensile structural steel with a heavy hot-dip galvanized finish for lifelong corrosion resistance. Its ultra-reinforced 4-cylinder geometry features oversize chrome-plated cylinder rams and heavy spherical pivot bearings capable of handling 3-tonne loads at a 1,000 mm load center. Driven by a high-output 24V 2.8 kW dual-flow power unit providing fast lift cycles under full capacity. Equipped with integrated ADR 84/00 certified rear underrun bumper bar.

Fits: Suits heavy rigids and fleet bodies

Specifications

Product TypeSevere-Duty 4-Cylinder Steel Cantilever Tail Lift
Rated Load Capacity3000 kg at 1000 mm load center
Platform Dimensions2450 W x 2600 H mm
Platform MaterialHeavy-gauge high-tensile structural steel with non-slip diamond checker plate
Surface FinishFull hot-dip galvanisation (corrosion protection for linehaul & coastal fleets)
Hydraulic MechanismUltra-reinforced 4-cylinder linkage with oversized hardened chrome rams
Self-Levelling SystemHeavy-duty dual tilt cylinders with mechanical ground angle memory
Power Supply24V DC high-output dual-flow electro-hydraulic power pack
Motor Output Rating2.8 kW extreme-duty DC motor
Working Pressure18 – 20 MPa (180 – 200 bar)
Lifting Height Range1100 mm – 1550 mm (semi-trailer & heavy chassis)
Chassis Mounting Spread880 mm heavy-vehicle chassis spread
Tare Weight~620 kg
Hydraulic SafetyDual-port velocity burst check valves, pilot-operated check valving & overload relief
Ground Contact ProtectionHeavy polyurethane and steel ground contact rollers
Warning & Hazard VisibilityCorner amber flashing LED beacons, high-vis ADR flags, reflective contour tape
Control InterfaceHeavy-duty lockable exterior steel control enclosure, platform foot controls, in-cab master switch
Dimensions2450 W x 2600 H mm
Technical SpecificationSevere-duty 3.0-tonne steel cantilever tail lift for semi-trailers, linehaul logistics, heavy equipment, and industrial transport.
ComplianceADR 84/00 & AS/NZS 1418.8 certified
Australian StandardADR 84/00 & AS/NZS 1418.8 Certified
CertificationADR 84/00 & AS/NZS 1418.8 Certified Commercial Vehicle Tail Lift
