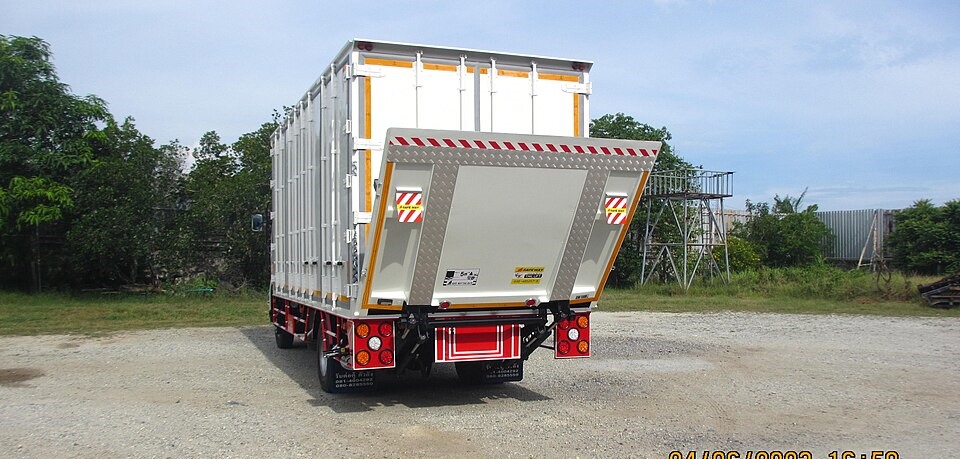

Hydraulic Tail Lift 2T Aluminium W2450xH2200 24V
Part number ATP-TL-02 · Tail Lifts
Price on application: request a quote · Enquiry
The Aurex 2,000 kg compact aluminium cantilever tail lift features a 2200 mm platform height, making it ideal for standard rigid truck dry-freight boxes and metro distribution bodies where overall roof clearance is critical. The marine-grade extruded aluminium deck reduces deadweight by over 30% compared to equivalent steel lifts, maximising legal payload for urban multi-drop deliveries. Equipped with dual lift cylinders, dual tilt cylinders, automatic pavement levelling, and a 24V 2.4 kW power pack housed in a weather-sealed enclosure. Fully compliant with ADR 84/00 underrun requirements and AS/NZS 1418.8 hoist standards.
Fits: Suits rigid trucks and tray bodies
Specifications
| Product Type | 4-Cylinder Hydraulic Cantilever Tail Lift (Compact Profile) |
|---|---|
| Rated Load Capacity | 2000 kg at 750 mm load center |
| Platform Dimensions | 2450 W x 2200 H mm |
| Platform Material | Marine-grade 6061-T6 extruded aluminium alloy with ribbed traction deck |
| Hydraulic Mechanism | 4-cylinder linkage (2 lift cylinders + 2 tilt cylinders) |
| Self-Levelling System | Hydraulic self-levelling with automatic mechanical ground tilt |
| Power Supply | 24V DC electro-hydraulic power pack |
| Motor Output Rating | 2.4 kW high-torque DC motor |
| Working Pressure | 16 – 18 MPa (160 – 180 bar) |
| Lifting Height Range | 950 mm – 1350 mm |
| Chassis Mounting Spread | 750 / 860 / 880 mm universal fitment |
| Tare Weight | ~435 kg |
| Hydraulic Safety | Port-mounted velocity fuse check valves & internal pressure relief |
| Ground Contact Protection | Heavy synthetic pavement protection rollers |
| Warning & Hazard Visibility | High-intensity flashing LED platform markers & ADR safety flags |
| Control Interface | IP67 dual-button exterior control box, dual foot switches, cabin isolator |
| Dimensions | 2450 W x 2200 H mm |
| Technical Specification | Optimized low-tare 2.0-tonne cantilever tail lift for urban multi-drop distribution, rigid box bodies, and food & beverage logistics. |
| Compliance | ADR 84/00 & AS/NZS 1418.8 certified |
| Australian Standard | ADR 84/00 & AS/NZS 1418.8 Certified |
| Certification | ADR 84/00 & AS/NZS 1418.8 Certified Commercial Vehicle Tail Lift |
